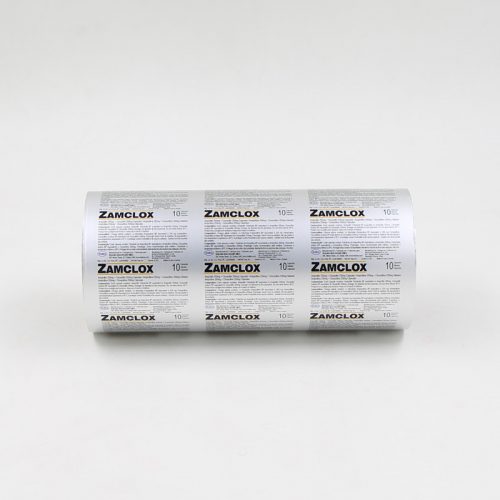

Printed blister foil

Blister foil, PTP blister lidding foil, one side coated with heat seal lacquer (HSL), another side printed with customer’s private logo and information of the medicine, can be used as a lidding seal for push-through packaging for pharmaceutical tablets, capsules or pills.

  • Alloy8011
  • TemperH 18
  • StructureOP/Ink/Al/HSL(Heat seal lacquer)
  • Thickness20mics, 25mics and 30mics
  • Weight of HSL3±1gsm, 5±1gsm, 7±1gsm
  • WidthCustomized from 60mm to 700mm
  • Inner core ID76mm or152mm
  • PackingStandard pharmaceutical packing
  • TAGS ,
  • 1st layer: Over lacquer, to protect the printing, ensure the ink fastness and not easy to peel off.
  • 2nd layer: Ink, text and information printing.
  • 3rd layer: Aluminium foil, thickness can be 20mics, 25mics and 30mics
  • 4th layer: Heat seal lacquer, heat seal with PVC, PVDC or other materials.

Structure of blister foil

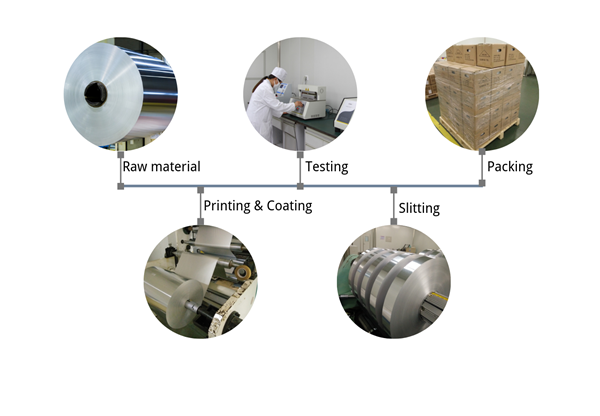

Processing of printed blister foil

  • Raw material: High quality pharmaceutical grade aluminium foil, H18 temper.
  • Coating and printing: One side printing with texts and information, then coated with outer protective primer.
    Another side coated with heat seal lacquer.
  • Testing: Testing physical properties, heat seal strength etc, to ensure the foil is qualified.
  • Slitting:Slitting the foil into width according to customer’s requirement.
  • Packing: Standard pharmaceutical packing, ready for delivery.

Features & Advantages of printed blister foil

  • Printed with brand and medicine information already, can be sealed to PVC,PVDC and Alu alu foil directly, excellent seal performance.
  • 100% Barrier against humidity,gases,light.
  • Awesome properties of anti-oxygen,moisture-proof,leak-proof,antipollution.
  • High degree of thermal stability,hygiene and bacterium-resistance.
  • Printing could be full printing, and customer’s logo and text of medicine information

Applications of printed blister foil

  • Use as a base lidding seal for push-through packaging.
  • Packaging for pharmaceutical tablets, capsules or pills.
  • Packaging for small candies and marble chocolate.
